Transformateurs de courant

Numéro de pièce du fabricant	Disponibilité en stock	Prix	Quantité	Fiche technique	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
B82801B0205A100 CURR SENSE XFMR 1:100 SMD EPCOS - TDK Electronics	670	-	RFQ	Fiche technique	Tape & Reel (TR),Cut Tape (CT)	B82801B	Active	50kHz ~ 1MHz	Invasive	-	2 mH	-	1:100	-	0.8mOhm Primary, 5.5Ohm Secondary	-	Surface Mount	0.280 L x 0.320 W (7.11mm x 8.13mm)	0.200 (5.08mm)
B82801B0324A040 CURR SENSE XFMR 1:40 SMD EPCOS - TDK Electronics	3,376	-	RFQ	Fiche technique	Tape & Reel (TR),Cut Tape (CT)	B82801B	Active	50kHz ~ 1MHz	Invasive	-	320 µH	-	1:40	-	0.8mOhm Primary, 1.14Ohm Secondary	-	Surface Mount	0.280 L x 0.320 W (7.11mm x 8.13mm)	0.200 (5.08mm)
B82801B0184A030 CURR SENSE XFMR 1:30 SMD EPCOS - TDK Electronics	722	-	RFQ	Fiche technique	Tape & Reel (TR),Cut Tape (CT)	B82801B	Active	50kHz ~ 1MHz	Invasive	-	180 µH	-	1:30	-	0.8mOhm Primary, 870mOhm Secondary	-	Surface Mount	0.280 L x 0.320 W (7.11mm x 8.13mm)	0.200 (5.08mm)
B82801B0724A060 CURR SENSE XFMR 1:60 SMD EPCOS - TDK Electronics	494	-	RFQ	Fiche technique	Tape & Reel (TR),Cut Tape (CT)	B82801B	Active	50kHz ~ 1MHz	Invasive	-	720 µH	-	1:60	-	0.8mOhm Primary, 1.98Ohm Secondary	-	Surface Mount	0.280 L x 0.320 W (7.11mm x 8.13mm)	0.200 (5.08mm)

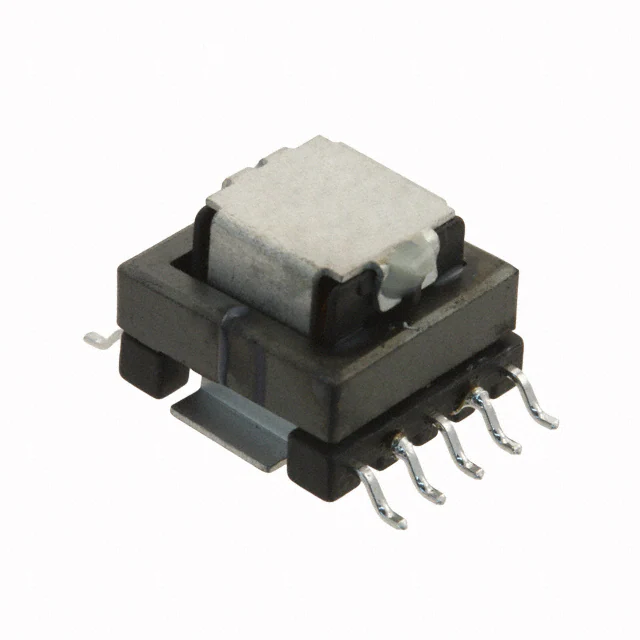

B82801C2245A200 CURR SENSE XFMR 1:200 SMD EPCOS - TDK Electronics	2,127	-	RFQ	Fiche technique	Tape & Reel (TR),Cut Tape (CT)	B82801C	Active	50kHz ~ 500kHz	Invasive	-	22.4 mH	-	1:200	-	0.28mOhm Primary, 2.9Ohm Secondary	-	Surface Mount	0.560 L x 0.530 W (14.22mm x 13.46mm)	0.394 (10.00mm)
B78419A2289A003 CURR SENSE XFMR 1:70 SMD EPCOS - TDK Electronics	2,785	-	RFQ	Fiche technique	Tape & Reel (TR),Cut Tape (CT)	B78419	Active	50kHz ~ 250kHz	Invasive	-	3 mH	-	1:70	-	0.5mOhm Primary, 2.1Ohm Secondary	-	Surface Mount	0.504 L x 0.535 W (12.80mm x 13.60mm)	0.567 (14.40mm)
B78417A2185A003 CURR SENSE XFMR 1:100 SMD EPCOS - TDK Electronics	2,183	-	RFQ	Fiche technique	Tape & Reel (TR),Cut Tape (CT)	B78417	Active	50kHz ~ 250kHz	Invasive	-	7 mH	-	1:100	-	1.9mOhm Primary, 5Ohm Secondary	-	Surface Mount	0.417 L x 0.480 W (10.60mm x 12.20mm)	0.433 (11.00mm)
B82801C1265A150 CURR SENSE XFMR 1:150 SMD EPCOS - TDK Electronics	3,054	-	RFQ	Fiche technique	Tape & Reel (TR),Cut Tape (CT)	B82801C	Active	50kHz ~ 500kHz	Invasive	-	12.6 mH	-	1:150	-	0.28mOhm Primary, 2.2Ohm Secondary	-	Surface Mount	0.560 L x 0.530 W (14.22mm x 13.46mm)	0.394 (10.00mm)
B78419A2288A003 CURR SENSE XFMR 1:50 SMD EPCOS - TDK Electronics	3,159	-	RFQ	Fiche technique	Tape & Reel (TR),Cut Tape (CT)	B78419	Active	50kHz ~ 250kHz	Invasive	-	1.7 mH	-	1:50	-	0.5mOhm Primary, 1.5Ohm Secondary	-	Surface Mount	0.504 L x 0.535 W (12.80mm x 13.60mm)	0.567 (14.40mm)
B78419A2271A003 CURR SENSE XFMR 1:180 SMD EPCOS - TDK Electronics	2,635	-	RFQ	Fiche technique	Tape & Reel (TR),Cut Tape (CT)	B78419	Active	50kHz ~ 250kHz	Invasive	-	25 mH	-	1:180	-	0.5mOhm Primary, 7.4Ohm Secondary	-	Surface Mount	0.504 L x 0.535 W (12.80mm x 13.60mm)	0.567 (14.40mm)
B82801B0984A070 CURR SENSE XFMR 1:70 SMD EPCOS - TDK Electronics	3,317	-	RFQ	Fiche technique	Tape & Reel (TR)	B82801B	Active	50kHz ~ 1MHz	Invasive	-	980 µH	-	1:70	-	0.8mOhm Primary, 4.75Ohm Secondary	-	Surface Mount	0.280 L x 0.320 W (7.11mm x 8.13mm)	0.200 (5.08mm)
B82801A1743A 30 CURR SENSE XFMR 1:30 SMD EPCOS - TDK Electronics	2,562	-	RFQ		Tape & Reel (TR)	B82801A	Active	50kHz ~ 1MHz	Invasive	-	74 µH	6VµS	-	-	2.5mOhm Primary, 800mOhm Secondary	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)
B82801A0743A030 CURR SENSE XFMR 1:30 SMD EPCOS - TDK Electronics	2,696	-	RFQ	Fiche technique	Tape & Reel (TR),Cut Tape (CT)	B82801A	Obsolete	50kHz ~ 1MHz	Invasive	-	74 µH	-	1:30	-	2.5mOhm Primary, 800mOhm Secondary	-	Surface Mount	0.138 L x 0.185 W (3.50mm x 4.70mm)	0.138 (3.50mm)
B82801A0134A040 CURR SENSE XFMR 1:40 SMD EPCOS - TDK Electronics	2,097	-	RFQ	Fiche technique	Tape & Reel (TR)	B82801A	Obsolete	50kHz ~ 1MHz	Invasive	-	132 µH	-	1:40	-	2.5mOhm Primary, 1.3Ohm Secondary	-	Surface Mount	0.138 L x 0.185 W (3.50mm x 4.70mm)	0.138 (3.50mm)
B82801A0214A050 CURR SENSE XFMR 1:50 SMD EPCOS - TDK Electronics	2,397	-	RFQ	Fiche technique	Tape & Reel (TR),Cut Tape (CT)	B82801A	Obsolete	50kHz ~ 1MHz	Invasive	-	205 µH	-	1:50	-	2.5mOhm Primary, 2.2Ohm Secondary	-	Surface Mount	0.138 L x 0.185 W (3.50mm x 4.70mm)	0.138 (3.50mm)
B82801A0304A060 CURR SENSE XFMR 1:60 SMD EPCOS - TDK Electronics	3,694	-	RFQ	Fiche technique	Tape & Reel (TR),Cut Tape (CT)	B82801A	Obsolete	50kHz ~ 1MHz	Invasive	-	295 µH	-	1:60	-	2.5mOhm Primary, 3.6Ohm Secondary	-	Surface Mount	0.138 L x 0.185 W (3.50mm x 4.70mm)	0.138 (3.50mm)
B82801A0824A100 CURR SENSE XFMR 1:100 SMD EPCOS - TDK Electronics	3,281	-	RFQ	Fiche technique	Tape & Reel (TR),Cut Tape (CT)	B82801A	Obsolete	50kHz ~ 1MHz	Invasive	-	820 µH	-	1:100	-	2.5mOhm Primary, 8.7Ohm Secondary	-	Surface Mount	0.138 L x 0.185 W (3.50mm x 4.70mm)	0.138 (3.50mm)
B82801A0135A125 CURR SENSE XFMR 1:125 SMD EPCOS - TDK Electronics	3,322	-	RFQ	Fiche technique	Tape & Reel (TR),Cut Tape (CT)	B82801A	Obsolete	50kHz ~ 1MHz	Invasive	-	1.28 mH	-	1:125	-	2.5mOhm Primary, 13Ohm Secondary	-	Surface Mount	0.138 L x 0.185 W (3.50mm x 4.70mm)	0.138 (3.50mm)
B82801A0404A070 CURR SENSE XFMR 1:70 7A SMD EPCOS - TDK Electronics	3,955	-	RFQ	Fiche technique	Tape & Reel (TR)	B82801A	Obsolete	50kHz ~ 1MHz	Invasive	7 A	400 µH	20VµS	1:70	-	2.5mOhm Primary, 4.6Ohm Secondary	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)

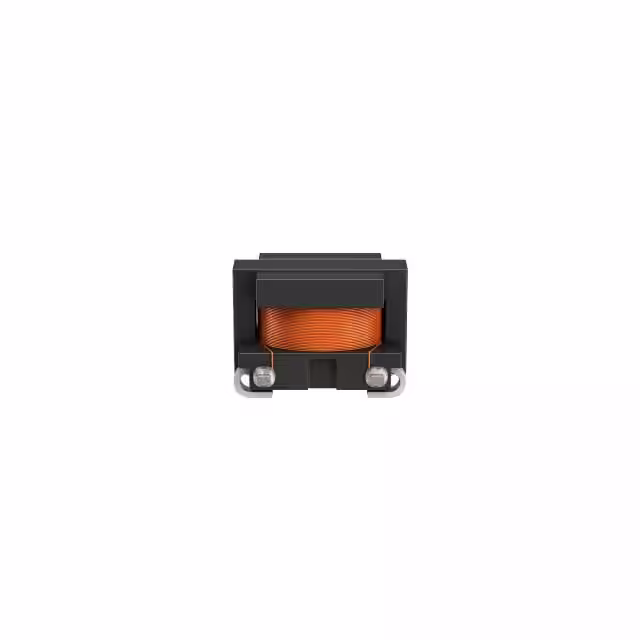

B82801A0185A150 CURR SENSE XFMR 1:150 7A SMD EPCOS - TDK Electronics	2,066	-	RFQ	Fiche technique	Tape & Reel (TR)	B82801A	Obsolete	50kHz ~ 1MHz	Invasive	7 A	1.84 mH	43.2VµS	1:150	-	2.5mOhm Primary, 21Ohm Secondary	-	Surface Mount	0.185 L x 0.138 W (4.70mm x 3.50mm)	0.138 (3.50mm)
