Noyaux de ferrite

Numéro de pièce du fabricant	Disponibilité en stock	Prix	Quantité	Fiche technique	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B66387Q0100K187 E65/32/27-N87-DG100 EPCOS - TDK Electronics	294	-	RFQ	Fiche technique	Bulk	E65/32/27	Active	E	E 65 x 32 x 27	N87	-	100 nH	±10%	Distributed Gapped	-	2200	0.27	147	535	529	78600	Uncoated	1.291 (32.80mm)
B66387Q0400K187 E65/32/27-N87-DG400 EPCOS - TDK Electronics	119	-	RFQ	Fiche technique	Bulk	E65/32/27	Active	E	E 65 x 32 x 27	N87	-	400 nH	±10%	Distributed Gapped	-	2200	0.27	147	535	529	78600	Uncoated	1.291 (32.80mm)
B65881Q0100K095 PQ35/35-N95-DG100 EPCOS - TDK Electronics	342	-	RFQ	Fiche technique	Bulk	PQ35/35	Active	PQ	PQ 35 x 35	N95	-	100 nH	±10%	Distributed Gapped	-	3000	0.47	79.7	171	161	13650	Uncoated	0.685 (17.40mm)
B66479G0000X195 FERRITE CORE EPCOS - TDK Electronics	3,224	-	RFQ	Fiche technique	Box	EQ13/9/3	Active	-	-	N95	-	-	-	-	-	3000	-	-	-	-	-	-	-
B65885A0000R087 FERRITE CORE PQ 2.35UH N87 2PCS EPCOS - TDK Electronics	3,109	-	RFQ	Fiche technique	Box	PQ16/11.6	Active	PQ	PQ 16 x 11.6	N87	-	2.35 µH	-20%, +30%	Ungapped	1200	2200	0.641	27	42.1	38.5	1136	Uncoated	0.228 (5.80mm)
B65885A0000R097 FERRITE CORE PQ 2.45UH N97 2PCS EPCOS - TDK Electronics	3,103	-	RFQ	Fiche technique	Box	PQ16/11.6	Active	PQ	PQ 16 x 11.6	N97	-	2.45 µH	-20%, +30%	Ungapped	1250	2300	0.641	27	42.1	38.5	1136	Uncoated	0.228 (5.80mm)
B65875B0000R092 FERRITE CORE PQ 2.4UH N92 2PCS EPCOS - TDK Electronics	424	-	RFQ	Fiche technique	Box	PQ20/16	Active	PQ	PQ 20 x 16	N92	-	2.4 µH	-20%, +30%	Ungapped	1105	1500	0.579	37	64	57.6	2367	Uncoated	0.319 (8.10mm)
B65875B0000R095 FERRITE CORE PQ 3.75UH N95 2PCS EPCOS - TDK Electronics	232	-	RFQ	Fiche technique	Box	PQ20/16	Active	PQ	PQ 20 x 16	N95	-	3.75 µH	-20%, +30%	Ungapped	1730	2000	0.579	37	64	57.6	2367	Uncoated	0.319 (8.10mm)
B65701T0400A048 FERRITE CORE P 400NH N48 2PCS EPCOS - TDK Electronics	220	-	RFQ	Fiche technique	Box	P30/19	Active	P (Pot Core)	P 30 x 19	N48	1.200 (30.50mm)	400 nH	±3%	Gapped	105	-	0.33	45	136	-	6120	Uncoated	0.374 (9.50mm)
B65883A0000R092 FERRITE CORE PQ 3.2UH N92 2PCS EPCOS - TDK Electronics	109	-	RFQ	Fiche technique	Box	PQ40/40	Active	PQ	PQ 40 x 40	N92	-	3.2 µH	-20%, +30%	Ungapped	1250	1500	0.49	92.5	188.3	159.9	17430	Uncoated	0.783 (19.90mm)
B66397G0000X197 FERRITE CORE ETD N97 1PC EPCOS - TDK Electronics	3,778	-	RFQ	Fiche technique	Box	ETD59/31/22	Active	ETD	ETD 59 x 31 x 22	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.228 (31.20mm)
B64290P0037X049 FERRITE CORE EPCOS - TDK Electronics	113	-	RFQ	Fiche technique	Box	TC6.3/3.8/2.5	Active	Toroid	R 6.3 x 3.8 x 2.5	N49	0.248 (6.30mm)	330 nH	±25%	Gapped	-	1500	4.97	15.21	3.06	-	46.5	Parylene	0.098 (2.50mm)
B66413G0000X197 FERRITE CORE EFD N97 1PC EPCOS - TDK Electronics	128	-	RFQ	Fiche technique	Box	EFD15/8/5	Active	EFD	EFD 15 x 8 x 5	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.295 (7.50mm)
B66319G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	676	-	RFQ	Fiche technique	Box	E30/15/7	Active	E	E 30 x 15 x 7	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.598 (15.20mm)
B66281G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	436	-	RFQ	Fiche technique	Box	ELP14/3.5/5	Active	ELP	ELP 14 x 3.5 x 5	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
B64290P0037X001 FERRITE CORE TOROID 20NH K1 EPCOS - TDK Electronics	114	-	RFQ	Fiche technique	Box	TC6.3/3.8/2.5	Active	Toroid	-	K1	0.249 (6.32mm)	20 nH	±25%	Ungapped	-	80	4.97	15.21	3.06	-	46.5	Parylene	0.099 (2.52mm)

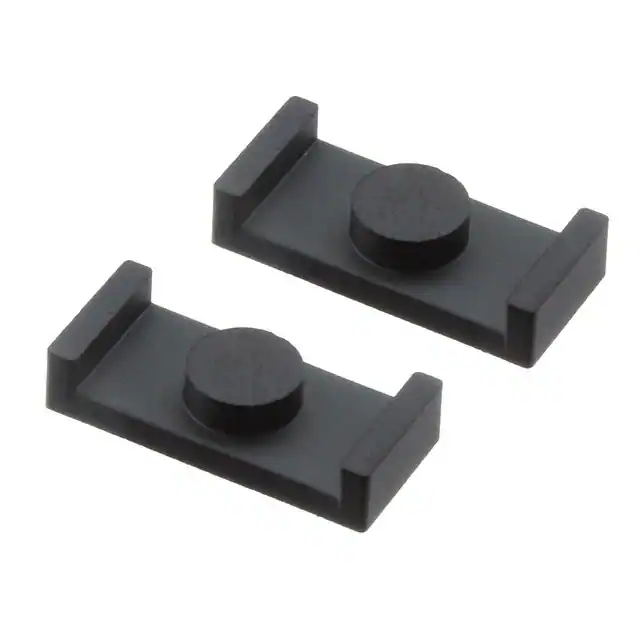

B65513J0000R087 FERRITE CORE ER 1.5UH N87 2PCS EPCOS - TDK Electronics	962	-	RFQ	Fiche technique	Box	ER14.5	Active	ER	ER 14.5 x 6	N87	-	1.5 µH	-20%, +30%	Ungapped	1250	2200	1.1	19	17.6	-	333	Uncoated	0.116 (2.95mm)

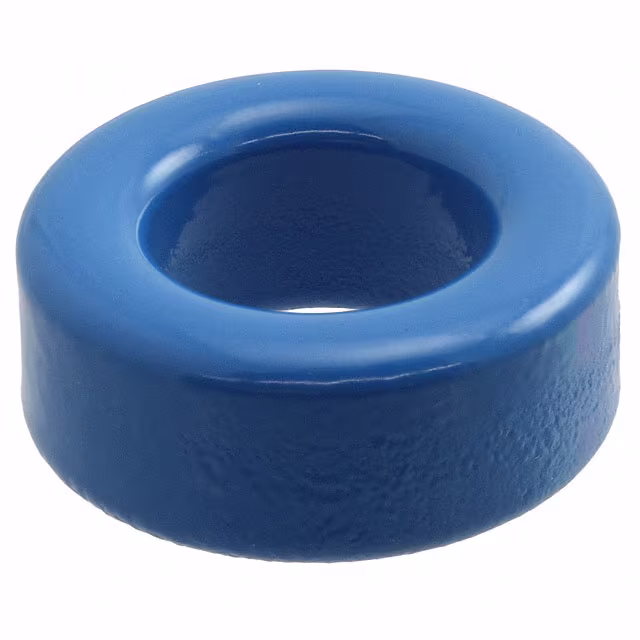

B64290L0632X087 FERRITE CORE TOROID 2.13UH N87 EPCOS - TDK Electronics	694	-	RFQ	Fiche technique	Box	TX20/10/7	Active	Toroid	-	N87	0.835 (21.20mm)	2.13 µH	±25%	Ungapped	-	2200	1.3	43.55	33.63	-	1465	Epoxy	0.319 (8.10mm)

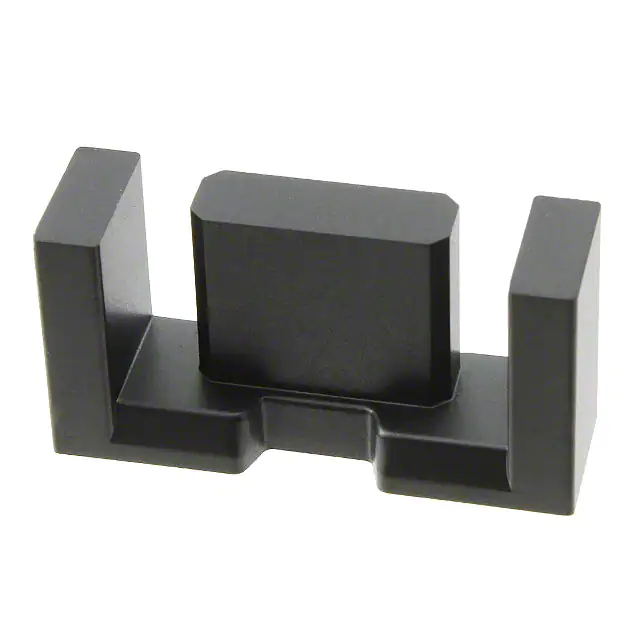

B66423G0000X187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	625	-	RFQ	Fiche technique	Box	EFD30/15/9	Active	EFD	EFD 30 x 15 x 9	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
B64290A0618X830 FERRITE CORE TOROID 4.6UH N30 EPCOS - TDK Electronics	434	-	RFQ	Fiche technique	Bulk	T25.3/14.8/15	Active	Toroid	R 25.3 x 14.8 x 10	N30	0.996 (25.30mm)	4.62 µH	±25%	Ungapped	-	4300	1.17	60.07	51.26	-	3079	Uncoated	0.394 (10.00mm)
