Éclairage LED - COB, moteurs, modules, bandes
| Photo : | Numéro de pièce du fabricant | Disponibilité en stock | Prix | Quantité | Fiche technique | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXM-32-50-80-54-AC00-F2-5LED COB CXM32 COOL WHITE SQUARE Luminus Devices Inc. |
159 | - |
RFQ |
Fiche technique |
Tray | CXM-32 | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 18820lm (Typ) | 2.64A | 85°C | 52.5V | 136 lm/W | 3.96A | 80 | 120° | - | 38.00mm L x 38.00mm W | - | - |
|

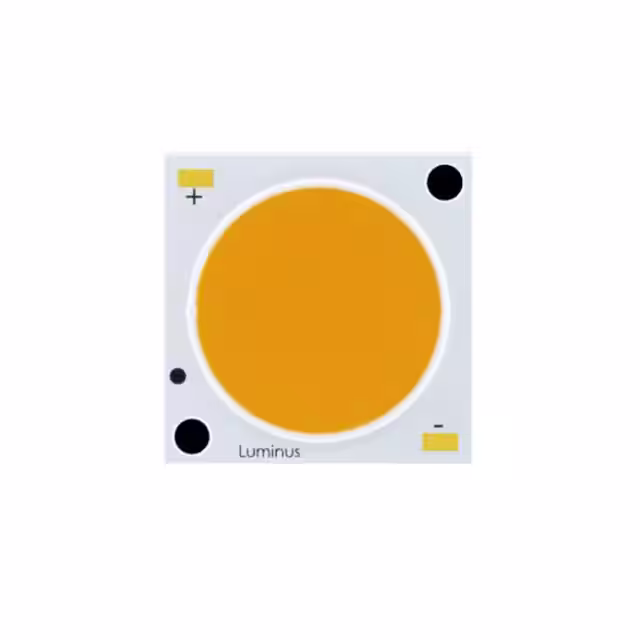

CXM-22-HM-61-54-AC30-P1-3LED COB CXM22 WHITE Luminus Devices Inc. |
456 | - |
RFQ |
Fiche technique |
Tray | Sensus™ Horticulture | Active | Chip On Board (COB) | White | - | - | Square | - | 1.1A | 85°C | 51.5V | - | 2.2A | - | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia |
|
PT-121-G-L11-MPLBIG CHIP LED HB MODULE GREEN Luminus Devices Inc. |
3,495 | - |
RFQ |
Fiche technique |
Tray | PT-121 | Active | LED Module | Green | - | 525nm | Rectangle | 5300lm (4400lm ~ 6200lm) | 18A | 40°C | 5.2V | 57 lm/W | 27A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 3.00mm L x 4.00mm W |
|
CBT-140-WCS-L16-UA123BIG CHIP LED COOL WHITE Luminus Devices Inc. |
3,280 | - |
RFQ |
Fiche technique |
Tray | CBT-140 | Active | LED Module | White, Cool | 7040K ~ 8500K | - | Rectangle | 3818lm (3680lm ~ 3955lm) | 21A | 85°C | 3.6V | 50 lm/W | 28A | 75 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia |
|
CXM-4-40-90-36-AC40-F5-3LED COB CXM4 4000K Luminus Devices Inc. |
2,450 | - |
RFQ |
Fiche technique |
Tray | CXM-4 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 500lm (Typ) | 120mA | 25°C | 33.8V | 123 lm/W | 400mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 4.50mm Dia |
|
|
CXM-4-30-90-36-AC40-F5-3LED COB CXM4 3000K Luminus Devices Inc. |
2,021 | - |
RFQ |
Fiche technique |
Tray | CXM-4 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 470lm (Typ) | 120mA | 25°C | 33.8V | 116 lm/W | 400mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 4.50mm Dia |
|

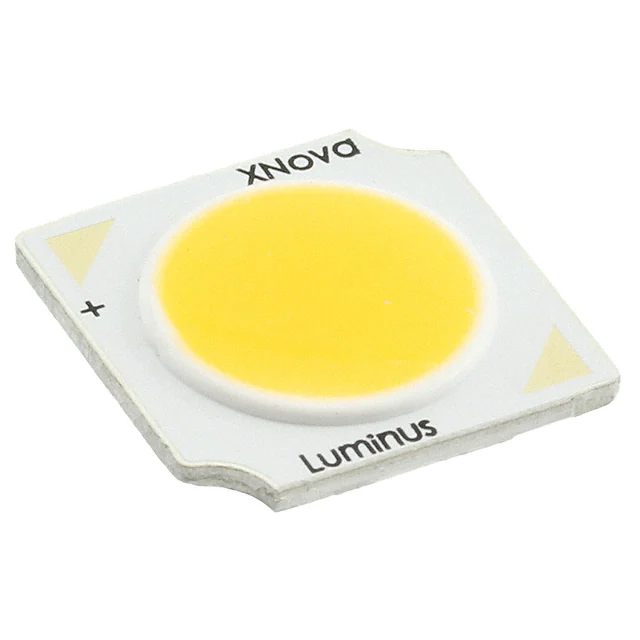

CLM-9-40-80-36-AC00-F2-3LED COB 5.6W 660LM 13.5MM SQ SMD Luminus Devices Inc. |
2,331 | - |
RFQ |
Fiche technique |
Tray | CLM-9 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 710lm (Typ) | 160mA | 85°C | 36V | 123 lm/W | 350mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 9.00mm Dia |
|

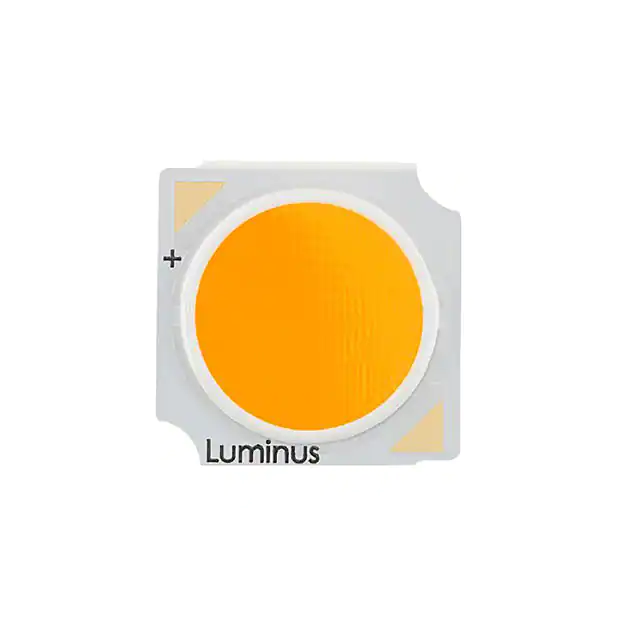

CLM-9-35-90-36-AC30-F4-3LED COB 3500K SQUARE Luminus Devices Inc. |
6,529 | - |
RFQ |
Fiche technique |
Tray | CLM-9 Gen3 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1040lm (Typ) | 240mA | 85°C | 33.8V | 128 lm/W | 500mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 9.60mm Dia |
|
|
CLM-9-30-90-36-AC30-F4-3LED COB 3000K SQUARE Luminus Devices Inc. |
6,264 | - |
RFQ |
Fiche technique |
Tray | CLM-9 Gen3 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1020lm (Typ) | 240mA | 85°C | 33.8V | 126 lm/W | 500mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 9.60mm Dia |
|
|
CLM-9-40-90-36-AC30-F4-3LED COB 4000K SQUARE Luminus Devices Inc. |
2,716 | - |
RFQ |
Fiche technique |
Tray | CLM-9 Gen3 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1100lm (Typ) | 240mA | 85°C | 33.8V | 136 lm/W | 500mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 9.60mm Dia |
|
|
CLM-9-27-90-36-AC30-F4-3LED COB 2700K SQUARE Luminus Devices Inc. |
1,449 | - |
RFQ |
Fiche technique |
Tray | CLM-9 Gen3 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 950lm (Typ) | 240mA | 85°C | 33.8V | 117 lm/W | 500mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 9.60mm Dia |
|
CHM-9-27-90-18-AC10-F3-3LED COB CHM9 WARM WHITE SQUARE Luminus Devices Inc. |
2,294 | - |
RFQ |
Fiche technique |
Tray | CHM-9 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | 360mA | 85°C | 18V | - | 545mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 13.46mm Dia |
|
|
CHM-9-40-90-18-AC10-F3-3LED COB CHM9 NEUT WHITE SQUARE Luminus Devices Inc. |
1,909 | - |
RFQ |
Fiche technique |
Tray | CHM-9 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | - | 360mA | 85°C | 18V | - | 545mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 13.46mm Dia |
|
|
CHM-9-30-90-36-XD22-F4-3LED COB 3000K WARM WHT SQUARE Luminus Devices Inc. |
211 | - |
RFQ |
Fiche technique |
Tray | Sensus™ Gen3 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1425lm (Typ) | 360mA | 85°C | 34V | 117 lm/W | 995mA | 90 | 120° | - | 15.00mm L x 15.00mm W | 1.37mm | 9.60mm Dia |
|

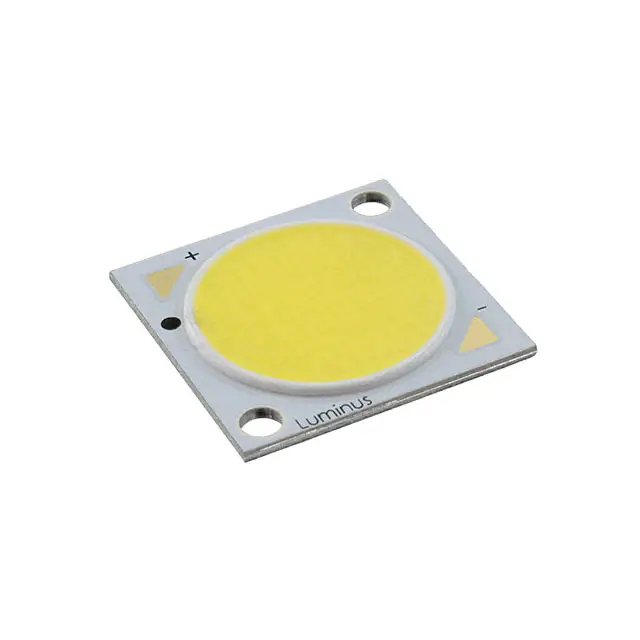

CXM-14-65-80-36-AA30-F4-5LED COB CXM14 COOL WHITE SQUARE Luminus Devices Inc. |
941 | - |
RFQ |
Fiche technique |
Tray | CXM-14 Gen3 | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 3770lm (Typ) | 720mA | 85°C | 34V | 154 lm/W | 1.45A | 80 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 14.30mm Dia |
|
CXM-14-30-80-36-AC30-F4-3LED COB 3000K SQUARE Luminus Devices Inc. |
246 | - |
RFQ |
Fiche technique |
Tray | CXM-14 Gen3 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3600lm (Typ) | 720mA | 85°C | 34V | 147 lm/W | 1.44A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.30mm Dia |
|

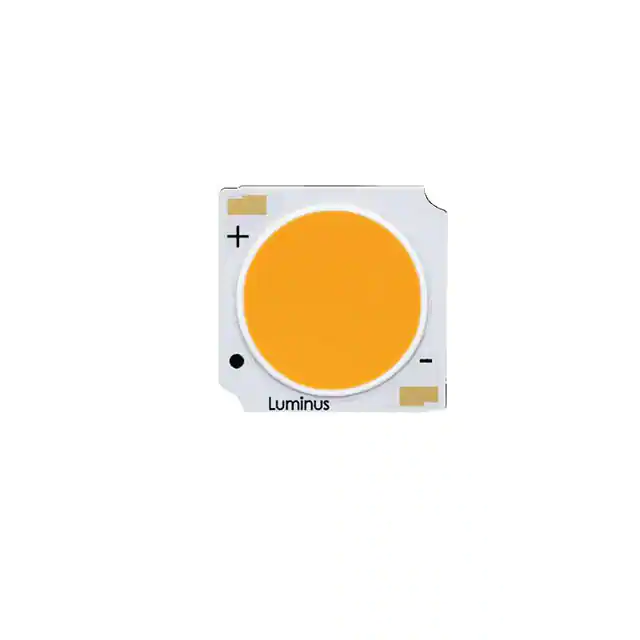

CXM-14-30-80-36-AC40-F5-3LED COB CXM14 Luminus Devices Inc. |
492 | - |
RFQ |
Fiche technique |
Tray | CXM-14 Gen4 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3915lm (Typ) | 720mA | 85°C | 33.5V | 162 lm/W | 2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.50mm Dia |
|

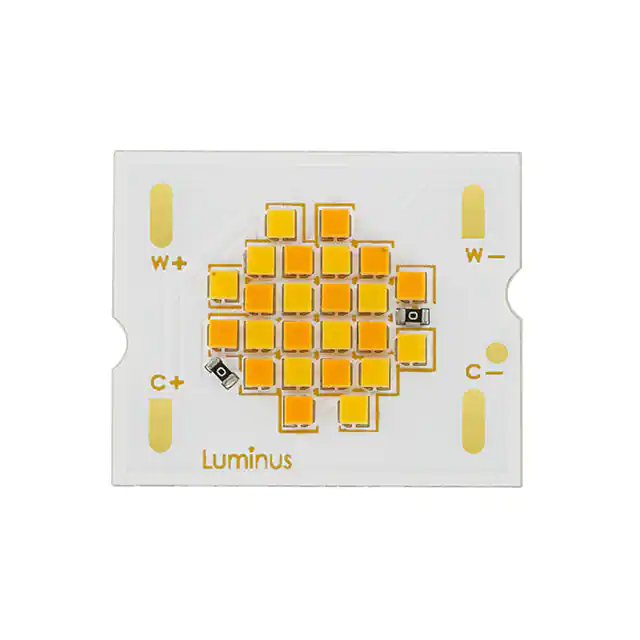

CTM-14-4018-90-36-TW01LED COB CTM14 WHITE Luminus Devices Inc. |
152 | - |
RFQ |
Fiche technique |
Tray | CTM, Human Centric (HCL) | Active | LED Module | White, Warm / White, Neutral | 1800K ~ 4000K | - | Rectangle | 825lm Warm White, 1370lm Cool White | 400mA | 85°C | 37V | 56 lm/W Warm White, 93 lm/W Cool White | 440mA | 90 | 130° | - | 24.00mm L x 20.00mm W | 1.58mm | 14.50mm Dia |
|
CXM-18-40-80-36-AA30-F4-3LED COB 4000K SQUARE Luminus Devices Inc. |
496 | - |
RFQ |
Fiche technique |
Tray | CXM-18 Gen3 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4805lm (Typ) | 900mA | 85°C | 34V | 157 lm/W | 2A | 80 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia |
|
CDM-14-4027-90-36-DW02LED COB CDM14 WHITE Luminus Devices Inc. |
136 | - |
RFQ |
Fiche technique |
Tray | CDM, Human Centric (HCL) | Active | LED Module | White, Warm / White, Neutral | 2700K ~ 4000K | - | Rectangle | 1980lm (Typ) | 600mA | 85°C | 35.5V | 93 lm/W | 800mA | 92 | 130° | Dimming - Warm | 24.00mm L x 20.00mm W | 1.58mm | 15.50mm Dia |
