TVS - Diodes
| Photo : | Numéro de pièce du fabricant | Disponibilité en stock | Prix | Quantité | Fiche technique | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCLAMP0502BATCTTVS DIODE 5VWM 25VC SC75 Semtech Corporation |
132,923 | - |
RFQ |
Fiche technique |
SC-75, SOT-416 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | 2 | - | 5V (Max) | 6V | 25V | 5A (8/20µs) | 125W | No | General Purpose | 1.2pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

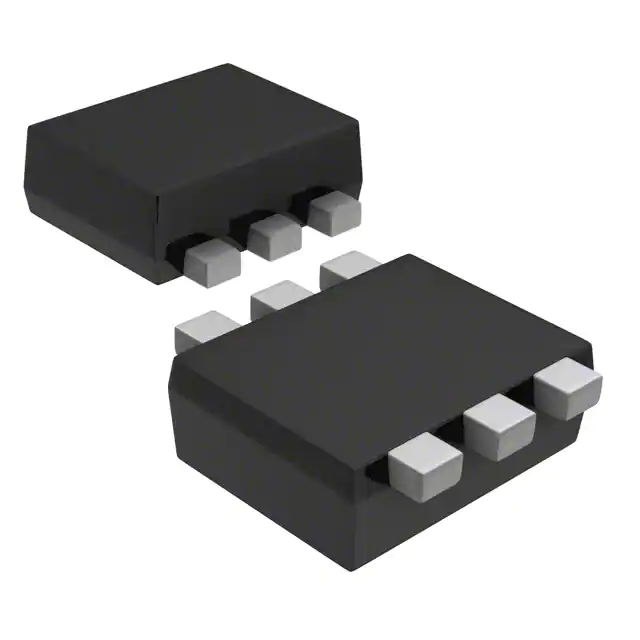

UCLAMP3304A.TCTTVS DIODE 3.3VWM 8VC SC89-6 Semtech Corporation |
115,934 | - |
RFQ |
Fiche technique |
SOT-563, SOT-666 | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | 4 | - | 3.3V (Max) | 3.5V | 8V | 5A (8/20µs) | 40W | No | General Purpose | 22pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0502A.TCTTVS DIODE 5VWM 18VC SC89 Semtech Corporation |
78,453 | - |
RFQ |
Fiche technique |
SOT-563, SOT-666 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 18V | 3A (8/20µs) | 50W | Yes | Ethernet, HDMI | 0.9pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0502B.TCTTVS DIODE 5VWM 25VC SC75 Semtech Corporation |
77,710 | - |
RFQ |
Fiche technique |
SC-75, SOT-416 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Not For New Designs | Zener | 2 | 1 | 5V (Max) | 6V | 25V | 5A (8/20µs) | 125W | No | HDMI, RF Antenna | 1.2pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP1521P.TCTTVS DIODE 15VWM 30VC SLP1006P2 Semtech Corporation |
40,213 | - |
RFQ |
Fiche technique |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | - | 1 | 15V (Max) | 16.7V | 30V | 4A (8/20µs) | 120W | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

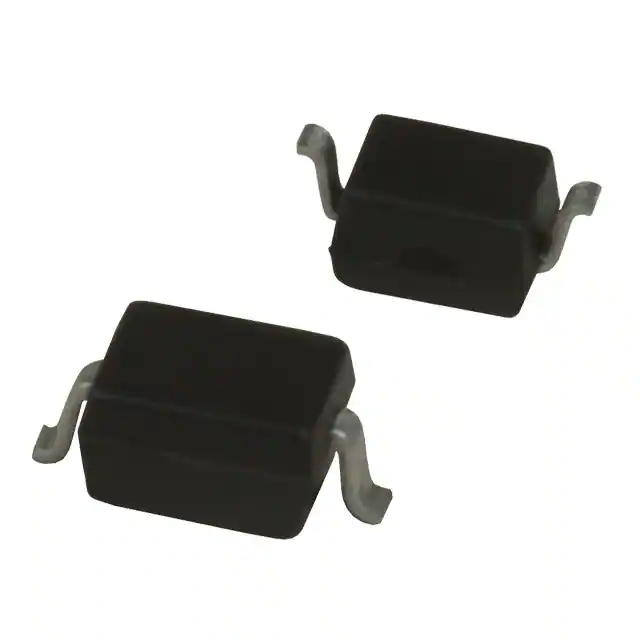

SD24C.TCTTVS DIODE 24VWM 44VC SOD323 Semtech Corporation |
17,262 | - |
RFQ |
Fiche technique |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 24V (Max) | 26.7V | 44V | 8A (8/20µs) | 350W | No | General Purpose | 50pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0531T.TCTTVS DIODE 5VWM 20VC SLP1006P2T Semtech Corporation |
57,785 | - |
RFQ |
Fiche technique |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | - | 1 | 5V (Max) | 6V | 20V | 4A (8/20µs) | 80W | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SD15C.TCTTVS DIODE 15VWM 29VC SOD323 Semtech Corporation |
64,690 | - |
RFQ |
Fiche technique |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 15V (Max) | 16.7V | 29V | 12A (8/20µs) | 350W | No | General Purpose | 75pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SD12C.TCTTVS DIODE 12VWM 24VC SOD323 Semtech Corporation |
62,620 | - |
RFQ |
Fiche technique |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 12V (Max) | 13.3V | 24V | 15A (8/20µs) | 350W | No | General Purpose | 100pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SD05C.TCTTVS DIODE 5VWM 14.5VC SOD323 Semtech Corporation |
46,931 | - |
RFQ |
Fiche technique |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V (Max) | 6V | 14.5V | 24A (8/20µs) | 350W | No | General Purpose | 200pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

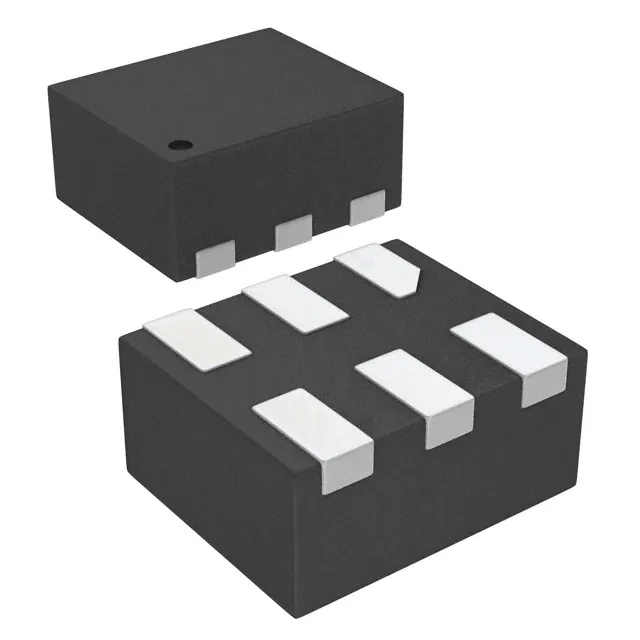

RCLAMP0502N.TCTTVS DIODE 6.5VWM 30VC SLP1210N6 Semtech Corporation |
16,473 | - |
RFQ |
Fiche technique |
6-UFDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Not For New Designs | Steering (Rail to Rail) | 3 | - | 6.5V (Max) | 7V | 30V | 3A (8/20µs) | 100W | Yes | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0821P.TCTTVS DIODE 8VWM 25VC SLP1006P2 Semtech Corporation |
35,728 | - |
RFQ |
Fiche technique |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | - | 1 | 8V (Max) | 10V | 25V | 4A (8/20µs) | 100W | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP0504S.TCTTVS DIODE 5VWM 25VC SOT23-6 Semtech Corporation |
134,122 | - |
RFQ |
Fiche technique |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | 25V | 6A (8/20µs) | 150W | Yes | Ethernet, USB OTG | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0582N.TCTTVS DIODE 6.5VWM 25VC SLP1210N6 Semtech Corporation |
85,718 | - |
RFQ |
Fiche technique |
6-UFDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, RailClamp® | Active | Steering (Rail to Rail) | 3 | - | 6.5V (Max) | 7V | 25V | 5A (8/20µs) | 125W | Yes | Automotive | 0.2pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP0512TQTCTTVS DIODE 5VWM 8.5VC SGP1006N3T Semtech Corporation |
48,938 | - |
RFQ |
Fiche technique |
3-XDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, RailClamp® | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6.5V | 8.5V | 20A (1.2/50µs) | 170W | Yes | Automotive, Ethernet | 2pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
SDC15.TCTTVS DIODE 12.8VWM 21.2VC SOT23-3 Semtech Corporation |
46,188 | - |
RFQ |
Fiche technique |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 12.8V (Max) | 14.3V | 21.2V | 10A (8/20µs) | 300W | No | General Purpose | 120pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP3306P.TCTTVS DIODE 3.3VWM 8VC SLP1616P6 Semtech Corporation |
22,965 | - |
RFQ |
Fiche technique |
6-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | 6 | - | 3.3V (Max) | 3.5V | 8V | 5A (8/20µs) | 40W | No | General Purpose | 20pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0854P.TCTTVS DIODE 5.5VWM 30VC SLP1616P6 Semtech Corporation |
15,889 | - |
RFQ |
Fiche technique |
6-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6.5V | 30V | 3A (8/20µs) | 100W | Yes | USB OTG | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0582B.TCTTVS DIODE 5VWM 20VC SC75 Semtech Corporation |
11,522 | - |
RFQ |
Fiche technique |
SC-75, SOT-416 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | 2 | - | 5V (Max) | 6V | 20V | 15A (8/20µs) | 300W | No | General Purpose | 1.2pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP3601P.TNTTVS DIODE 33VWM 60VC SLP1006P2 Semtech Corporation |
47,920 | - |
RFQ |
Fiche technique |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, uClamp® | Active | Zener | 1 | - | 33V (Max) | 36V | 60V | 2A (1.2/50µs) | 125W | No | Automotive | 25pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
